Downloads

Software

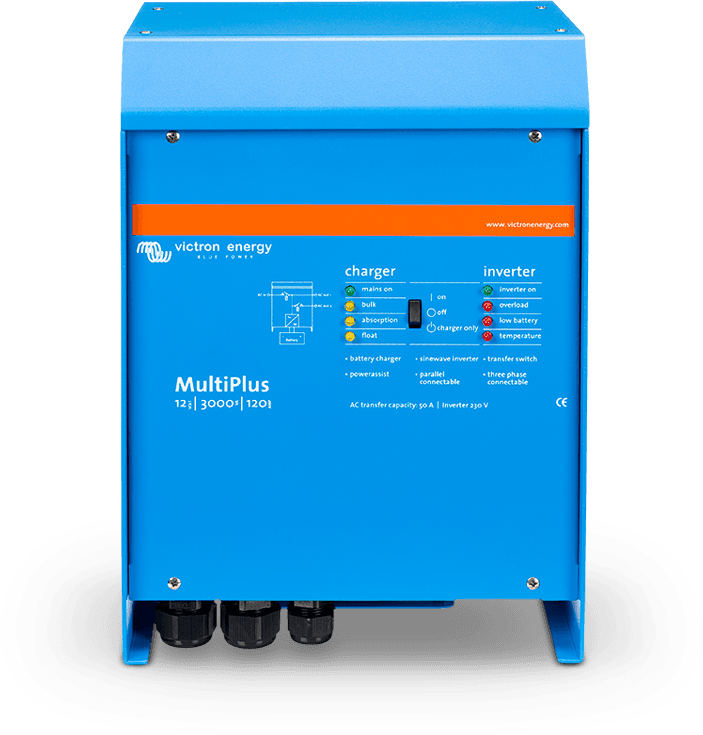

VE Configuration tools for VE.Bus Products

VE Configuration tools for VE.Bus Products

This package contains:

  • VEConfigure 3 (v9004187)
  • VE.Bus Quick Configure (v9010136) - For installations up to 3 Multis
  • VE.Bus System Configurator (v9009131) - For larger installations
  • VEFlash (v9005145) - Firmware update tool to update VE.Bus products

To connect your computer to a VE.Bus product (Multis, Quattros and Inverters), you need an MK2-USB (ASS030130000) and an RJ45 UTP cable (ASS030064xxx and ASS030065xxx).

USB driver installation program for MK2 USB

To install the MK2-USB driver on a computer without an internet connection, first download the MK2-USB driver and install it. Only afterwards connect the MK2-USB to your computer for the first time.

More documentation

Instruction video showing the firmware update procedure:

VictronConnect app

VictronConnect app

Monitor, configure and update firmware of all Victron products with

  • built-in VE.Direct port, such as BMV Battery Monitors, MPPT Solar Charger Controllers and Phoenix Inverter VE.Direct 250VA - 500VA.
  • buitl-in VE.Smart, such as the Blue Smart IP65 Charger and BlueSmart MPPT Solar Charge Controllers

Connect to the product wirelessly using our VE.Direct Bluetooth Smart dongle on iOS, Android and Mac. Or connect by using a VE.Direct to USB interface on Windows, Mac and Android*.

 See VictronConnect manual for more information.

 * A compatible device and a USB On-The-Go cable is required.

50A Buck-Boost DC/DC converter software

50A Buck-Boost DC/DC converter software

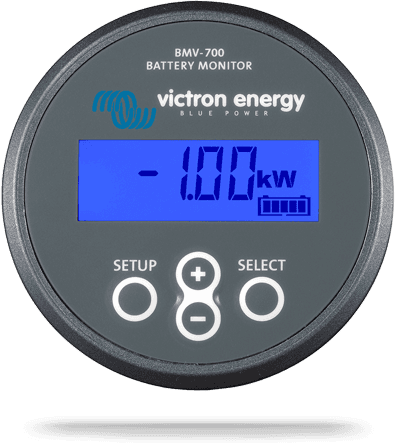

BMV Reader

BMV Reader

BMV Battery monitor software.
For models BMV-600 series and 700 series

Victron P&A app*

Victron P&A app*

The Victron P&A app allows you to search the current Victron product listing, including stock holding, prices and availability.

* Please note: this app requires an active Victron E-Order login.

For Android users: are you unable to open the apps in the app store? Download the APK files.

Victron VRM app

Victron VRM app

Monitor and manage your Victron Energy system from your phone or tablet. Login with your VRM account, and see all your sites in a list.

For Android users: are you unable to open the apps in the app store? Download the APK files.

Victron Toolkit app

Victron Toolkit app

Calculate cable size and voltage drop, understand all LED codes from Victron Energy Multi and Quattro inverter/chargers and calculate output power derating for inverters and chargers for the expected ambient temperature. For more detailed product information scan the QR code printed in your Victron equipment with the built-in scanner.

For Android users: are you unable to open the apps in the app store? Download the APK files.

What's New in Version 2.3
In this release we have improved the LED definitions functionality to support more of our products: MPPT (2 & 3 led models), and all Phoenix Inverters up to 1200VA. The interface has also been improved to help you find the correct LED definition quicker. Furthermore, any changes to these definitions will be pushed to the app automatically!

Thanks for using our toolkit app!

Data communication with Victron Energy products

Data communication with Victron Energy products

Many of our customers integrate our products into their own systems, using data communication protocols. There are several options to establish data communication. This white paper explains the possibilities.

Data communication with Victron Energy products

VE Power Setup

VE Power Setup

Use this to update firmware for Victron products that are updateable via a VE.Can communication port. These are:

  • BlueSolar Chargers 150/70 and 150/85
  • Lynx Shunt VE.Can
  • All four Skylla-i battery chargers
  • All our different VE.Can and NMEA2000 interfaces
  • Ion Control

Refer to the 'Need help connecting?' button in VE Power Setup for detailed connection instructions on all Victron products.

For more information, refer to the VE Power Setup Manual.

mpptprefs

mpptprefs

Configure settings of MPPT charge controllers with a VE.Direct port:: 75/10, 75/15, 100/15, 100/30, 150/35, 75/50, 100/50, 150/70, 150/85 and 150-100.

mpptprefs manual

MPPT Calculator Excel sheet

MPPT Calculator Excel sheet

an Excel sheet to match solar modules to MPPT charge controllers

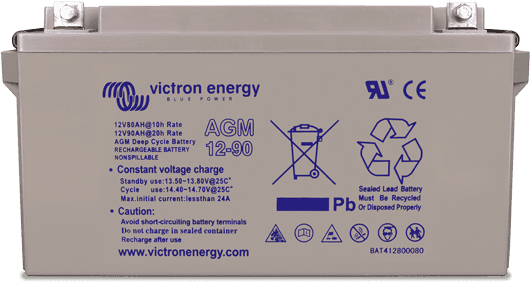

Peukert Calculator

Peukert Calculator

Helps you with your Peukerts coefficient calculations

TeamViewer QuickSupport

TeamViewer QuickSupport

Download and run this program when instructed by your Victron Energy contact. By using this software, you accept to show your desktop to a Victron Energy support engineer.

Software for old devices

VEConfigure for devices with software versions14xxxxx and 17xx000 - 17xx129



BMV501 Link Software

VE Data Control Setup

Software to configure, and also log data from the BlueSolar Grid Inverters

Victron Global Remote Configuration tool

VGR Configure
For both the Victron Global Remote 2 and the Victron Ethernet Remote. Requires VGR firmware 2.0 or higher.

USB Drivers
Download and install these separately. They are not included with VGR Configure. The USB Driver Installer requires java to be installed on your computer. Download it here: http://www.java.com/download/.
