Feldtest

PV Modules

Ein reeler Vergleich zwischen Mono-, Poly, PERC- und Dual-PV-Modulen.

Realtime data
-- -- Ortszeit
Installation date: 09-03-2020
--
--
--
--
--
--
--
Bestrahlungsstärke
Rumänien
44°17'59.9"N
26°11'29.7"E

Mono

2500Wp --
Total solar yield: --

Split-cell

2500Wp --
Total solar yield: --

Poly

2500Wp --
Total solar yield: --

PERC

2500Wp --
Total solar yield: --

* Dies ist einFeldtest und die Ergebnisse sind spezifisch für diese Installation an diesem Standort,Recherchieren Sie, welche die beste Lösung für Ihre Situation ist, da die Ergebnisse je nach Umwelteinflüssen unterschiedlich ausfallen können.

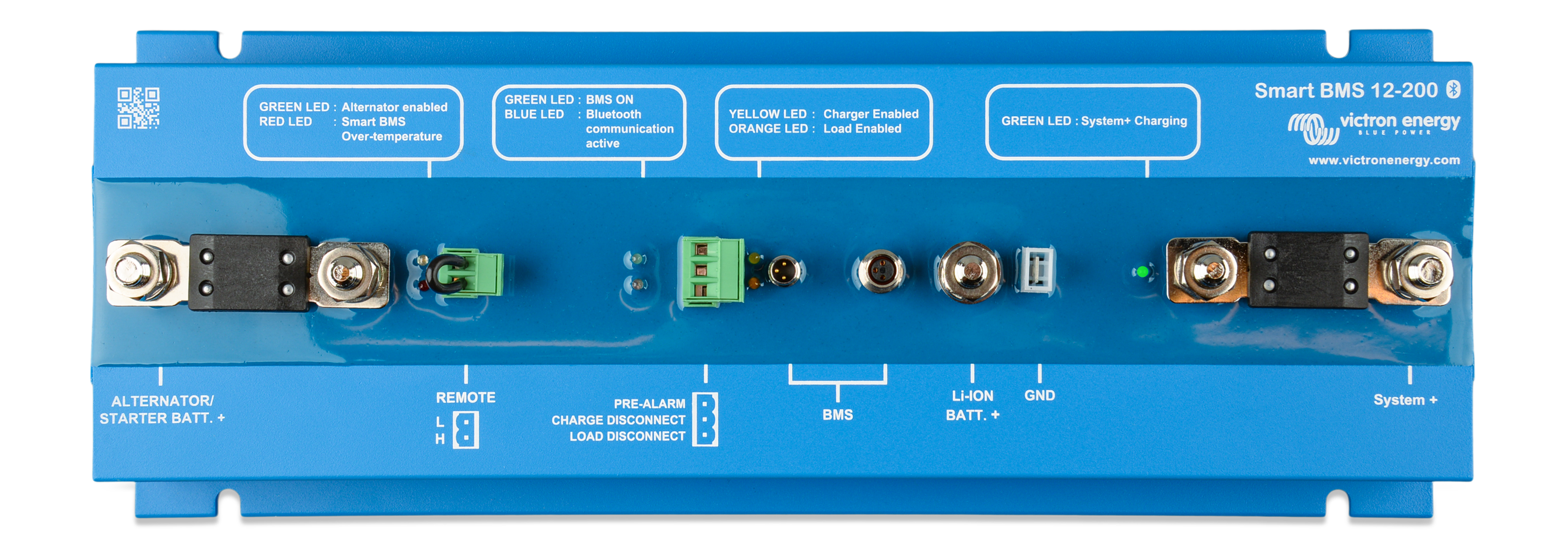

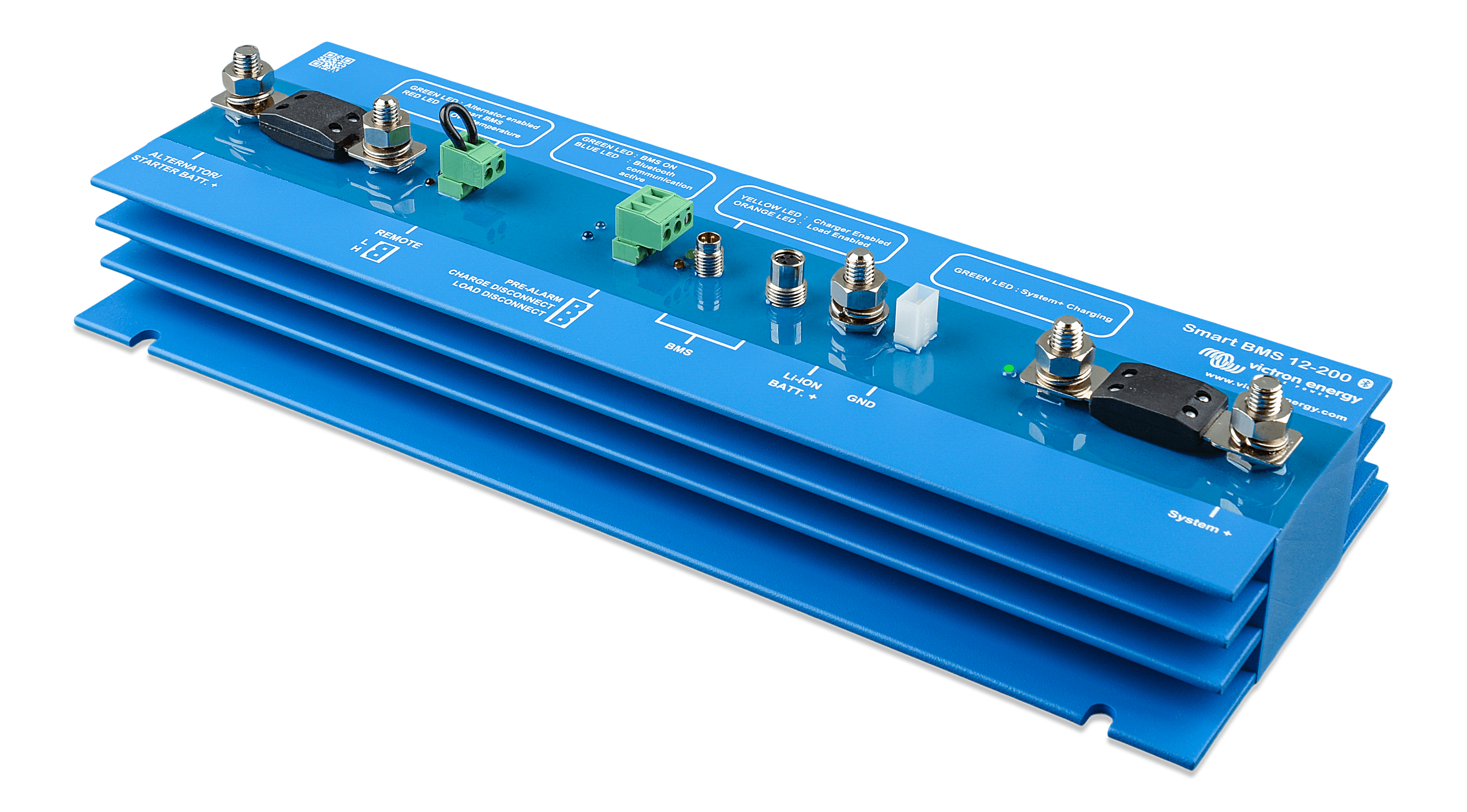

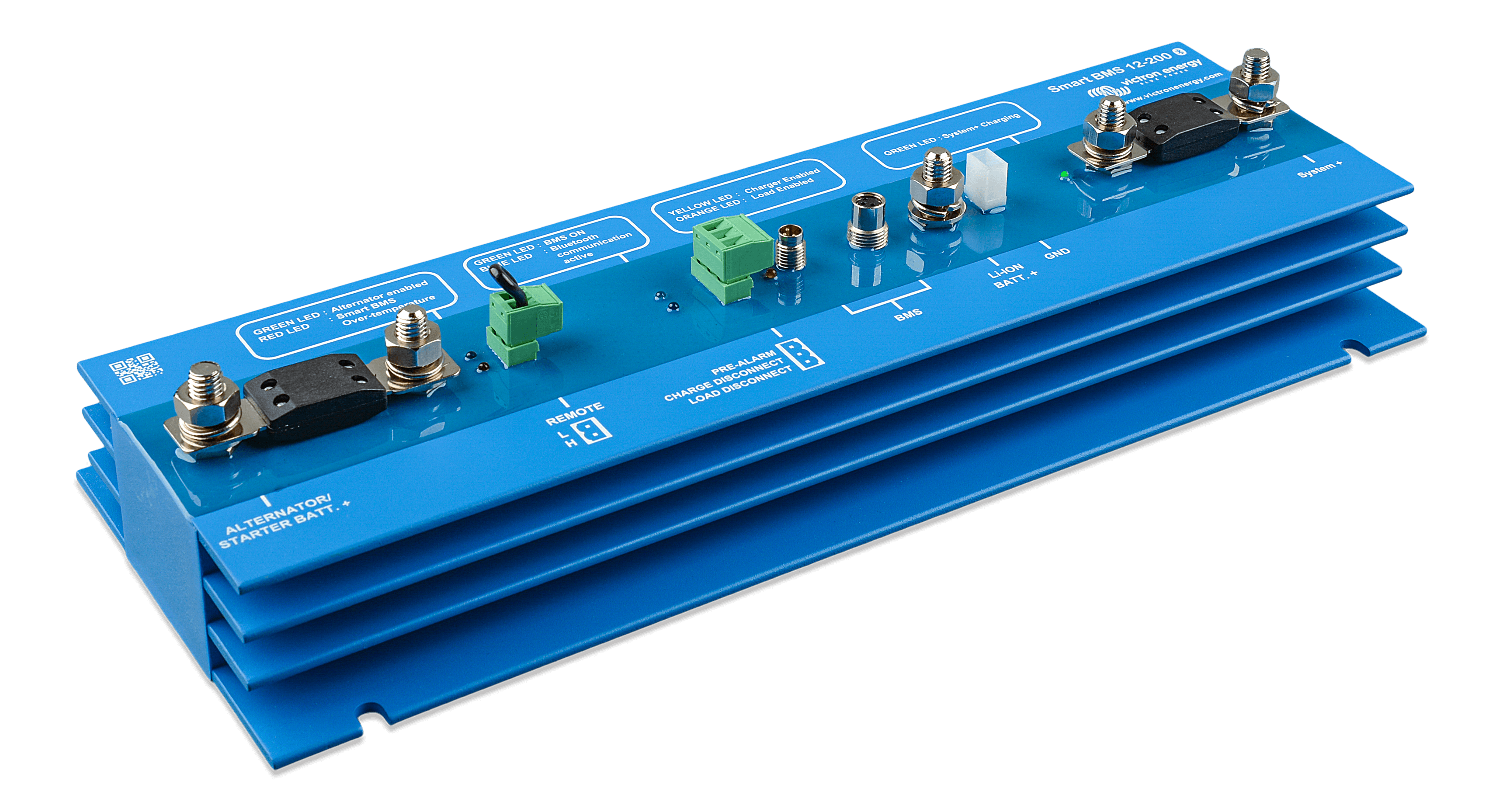

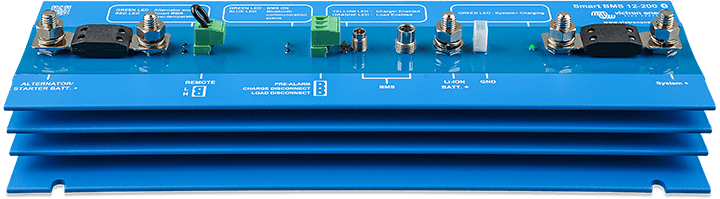

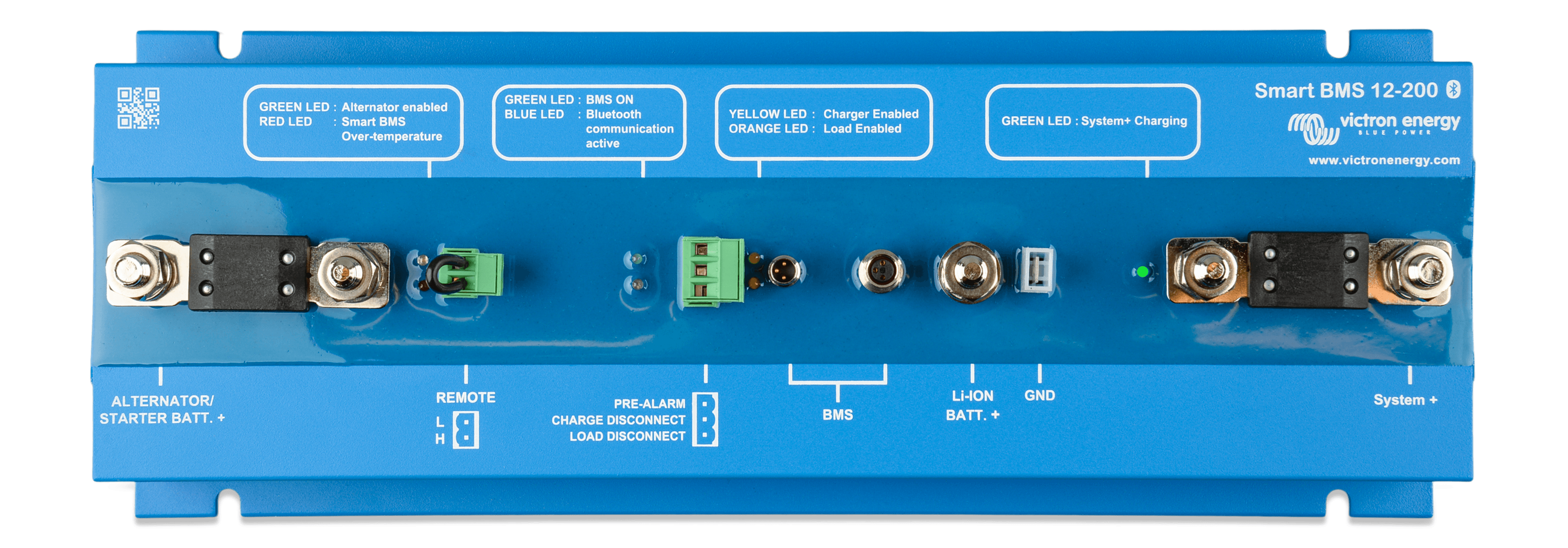

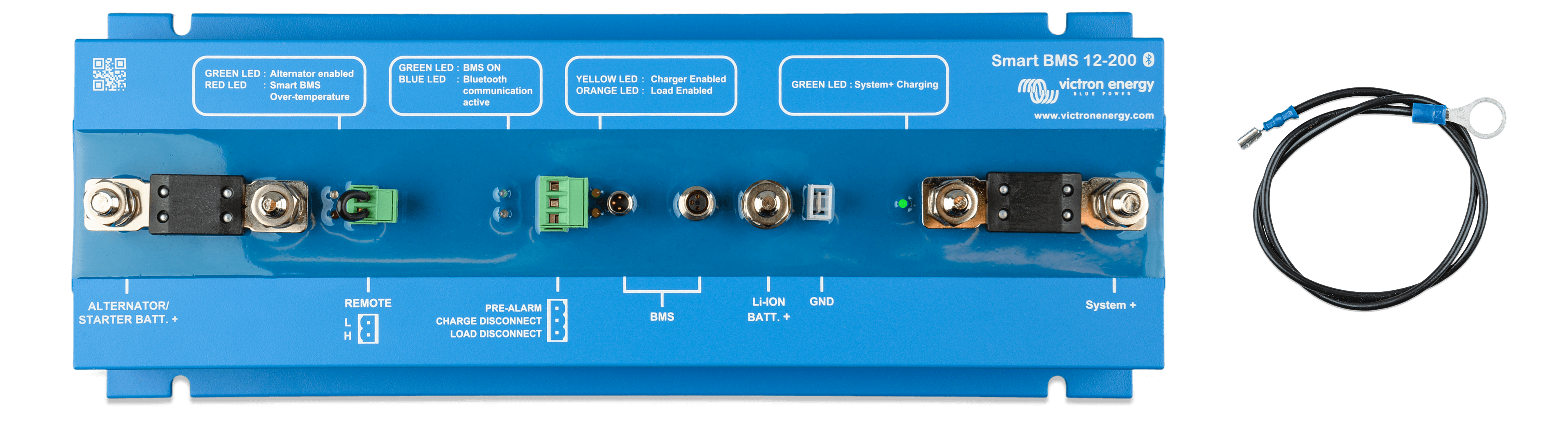

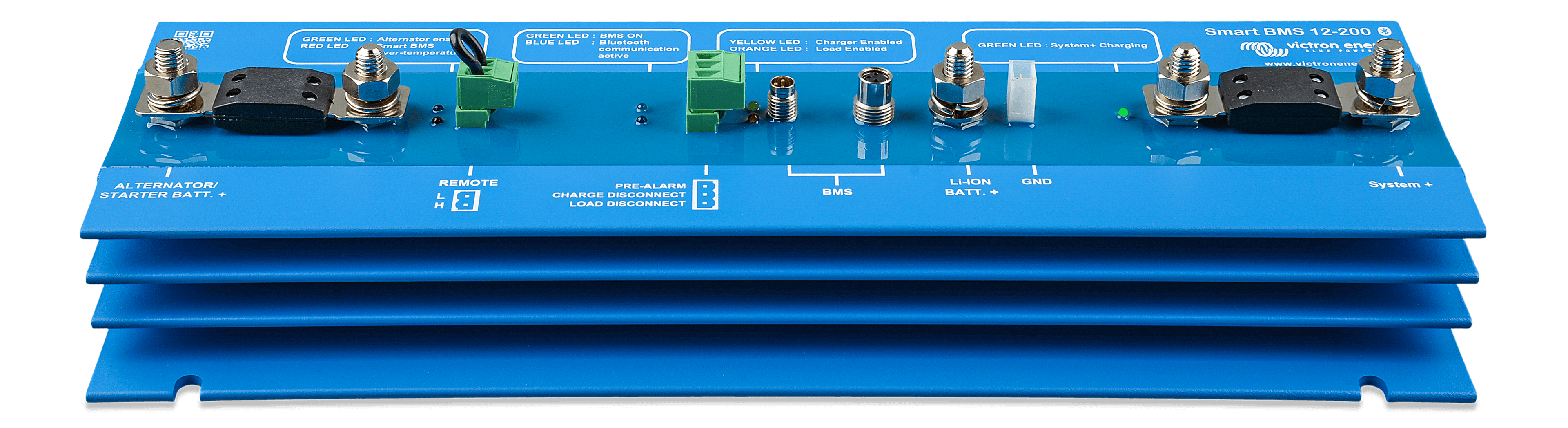

The Smart BMS 12/200 is an all-in-one Battery Management system for Victron Lithium-Iron-Phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator such as in vehicles and boats.

It combines a Current Limiter, Battery Combiner and Battery Protector in a robust and compact solution and lets you safely connect any size 12V alternator (and starter battery), loads and chargers to Smart Lithium batteries.

The Smart BMS 12/200 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery cell voltage, high battery cell voltage or over temperature.

The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and starter battery) can be safely connected to the Smart Lithium battery (or battery bank) and the starter battery is protected from excessive discharge.

The BMS is equipped with Bluetooth for monitoring and configuration, a remote on/off connector, to turn the BMS (and the system) off via a remote switch and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.
